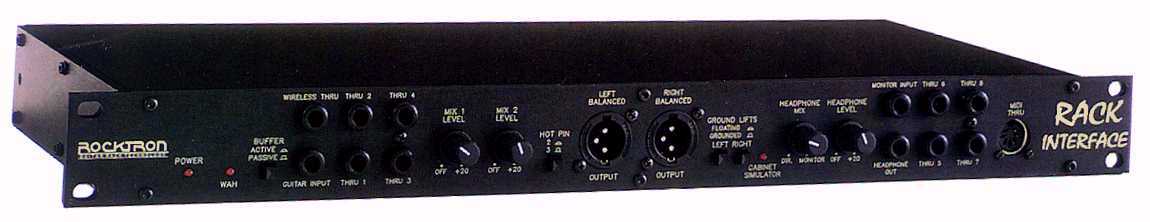

The Rocktron Rack Interface contains a variety of items needed for a large rack system.
See also Guide to Switchers, MIDI pedalboards, and Routers: Mixers and other return devices.
Very similiar to Digital Music Corporation System Mix Plus. The speaker simulator in the DMC System Mix Plus is the CabTone circuitry.
Official product page for Rack Interface - excerpts:
Makes logical sense of your rack. Swiss army knife for integrating all of the elusive extra boxes and gadgets that end up strapped all over the inside of your rack. Evolved from years of technical support and backup for the professionals.
- Single rackspace unit
- Active or passive two-input/six-output splitters with thru's on front and back
- Wireless bypass
- Four stereo thru 1/4" stereo jacks
- Seven-pin MIDI thru
- Eight Channel unity-gain stereo mixer (which can work as dual four channel stereo mixers each with their own mix level)
- Direct XLR outputs with remote switchable speaker simulation [on or off]
- Ground lift and hot pin selection for XLR outs
- Footswitchable remote Wah effect
- VCA which eliminates running extended cables from frontstage to rack
- Stereo headphone amp that taps off the direct outs (and monitor input making it possible to run a separate studio monitor mix)
- CD input or tape deck input.
[to do - Effects database]
